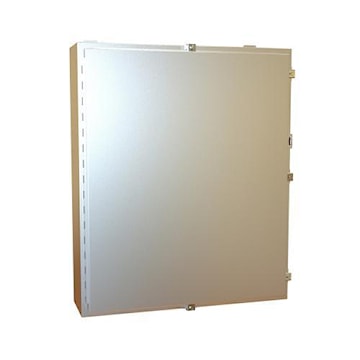

HAMMOND MANUFACTURING 1418N4SSM8 1418 N4 SS Series Enclosure Stainless Steel NEMA 3R, 4X, 13, IP66 914 mm H x 762 mm W x 203 mm D Stainless Steel

Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1418N4SSM8

Description

Wall mount enclosure type 4X constructed of 14 gauge 304 stainless steel. Continuous hinge door with clamps. Smooth, continuously welded seams without knockouts, cutouts or holes. Door stiffeners are provided in the larger enclosures for extra rigidity. Seamless poured-in place gasket. Provision for padlocking. A removable 12 gauge inner panel is included. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

Specifications

Brand Name Hammond Manufacturing Sub Brand 1418 N4 SS Series
Item Name Enclosure Type Gangable, Single Door, Two Lock
Width 762 mm Depth 203 mm
Height 914 mm Cover Type Continuous Hinged
Gauge 14 NEMA Rating NEMA 3R, 4X, 13, IP66
Series 1418 N4 SS Mounting Type Wall
Material Stainless Steel Finish Brushed/Grinded
Color Stainless Steel Standards CE, CSA Certified, UL Listed
Application For Use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures UPC 623980386102
