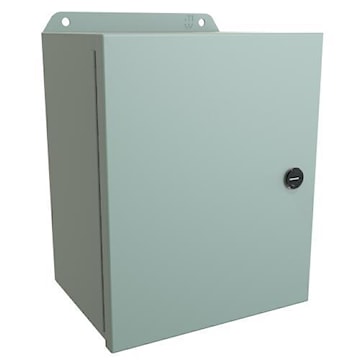

HAMMOND MANUFACTURING EJ1086 Eclipse Junior Series Junction Box Mild Steel NEMA 4, IP66 254 mm H x 203 mm W x 152 mm D Gray

Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:EJ1086

Description

Junction box type 4 with continuous hinge door with quarter turn latches. 16 gauge mild steel enclosure and cover. Smooth continuously welded seams without knockouts and cutouts or holes. 14 gauge welded brackets provide for enclosure mounting. Includes removable 14 gauge galvanized inner panel. ANSI 61 grey recoatable powder coating. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

Specifications

Brand Name Hammond Manufacturing Sub Brand Eclipse Junior Series
Item Name Junction Box Type Gangable, Single Door, Single Lock
Width 203 mm Depth 152 mm
Height 254 mm NEMA Rating NEMA 4, IP66
Mounting Type Wall Material Mild Steel
Finish Powder Coated Color Gray
Includes Mounting Plate Standards CSA Certified, UL Listed, CE
Application For Industrial UPC 623980357737
