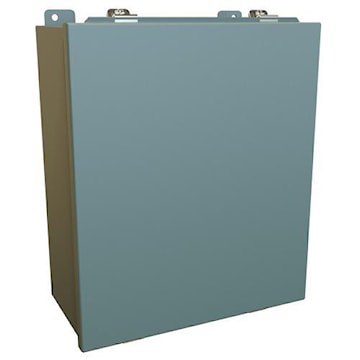

HAMMOND MANUFACTURING 1414N4PHM6 1414 N4 PH Series Junction Box with Panel Mild Steel NEMA 3R, 4, 13, IP66 356 mm H x 305 mm W x 152 mm D Gray

Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1414N4PHM6
Documents Documents

Description

Junction box type 4 with 16 or 14 gauge mild steel enclosure, 14 gauge mild steel covers. Continuous hinge door with clamps. ANSI 61 grey recoatable powder coating. Includes removable 14 gauge inner panel. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection.

Specifications

Brand Name Hammond Manufacturing Sub Brand 1414 N4 PH Series
Item Name Junction Box with Panel Type Gangable, Single Door, Two Lock
Width 305 mm Depth 152 mm
Height 356 mm Cover Type Continuous Hinged
Gauge 14/16 NEMA Rating NEMA 3R, 4, 13, IP66
Series 1414 N4 PH Mounting Type Wall
Material Mild Steel Finish Powder Coated
Color Gray Standards CE, CSA Certified, UL Listed
Application For Use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Outdoor Installation UPC 623980346601
