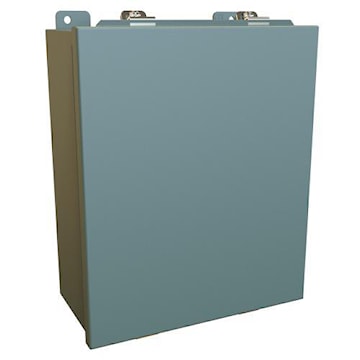

HAMMOND MANUFACTURING 1414N4PHK 1414 N4 PH Series Junction Box with Panel Mild Steel 3R, 13, 4 12 in H x 10 in W x 5 in D Gray

Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1414N4PHK
Documents Documents

Description

Junction box type 4 with 16 or 14 gauge mild steel enclosure, 14 gauge mild steel covers. Continuous hinge door with clamps. ANSI 61 grey recoatable powder coating. Includes removable 14 gauge inner panel. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection.

Specifications

Brand Name Hammond Manufacturing Sub Brand 1414 N4 PH Series
Item Name Junction Box with Panel Type N4 J Box, Hinge Cover w/panel
Width 10 in Depth 5 in
Height 12 in Cover Type Hinged
Gauge 14 or 16 ga Body, 14 ga Cover NEMA Rating 3R, 13, 4
Series 1414 N4 PH Mounting Type Wall
Material Mild Steel Color Gray
Includes Removable 14 ga Inner Panel Standards CSA, CE Certified, UL Listed
Application Designed for use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures UPC 623980346205
