EXM 1100 202006 MEDIUM UTILITY ENCLOSURES

Manufacturer:EXM
Manufacturer #:1100 202006

Description

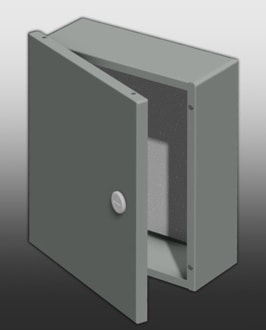

The 1100 is used where a control installation does not require a high degree of protection (watertight and dust-tight), but where a quality enclosure is required. The door can be easily removed and features a 1/4 turn locking mechanism that ensures a positive closing. The box is ASA61 smooth grey. The inner panel is galvanized (Optional inner panel for specific sizes). Internal mounting holes are provided.

Specifications

Brand Name EXM Manufacturing Item Name Utility Enclosure
Type Watertight Width 20 in
Depth 20 in Height 6.87 in
Gauge 16 ga NEMA Rating NEMA 1
Series Commercial CH 1100 Material Steel
Finish Galvanized, Smooth Color ASA61 Gray
UPC 717678213037

Packages

1 - rarr_unit_1
