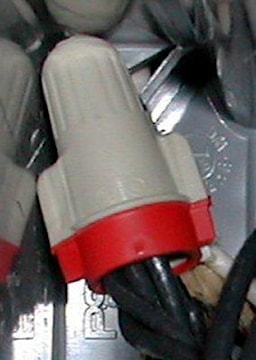

3M CANADA TR-JUG Performance Plus™ Twist-On Wire Connector Rounded Wing, Flame Retardant 600 VAC, 5 Conductors Tan/Red
mmmtrjug
3M CANADA TR-JUG Performance Plus™ Twist-On Wire Connector Rounded Wing, Flame Retardant 600 VAC, 5 Conductors Tan/Red
Manufacturer:3M CANADA
Manufacturer #:TR-JUG
Description
Use a 3M™ Wire connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection. Incredible wire range (2 #18 up to 5 #12). One connector replaces 3 (yellow, red tan) in the majority of all field applications. Smooth, comfortable feel. Compact size and red miniskirt. Quick bite spring design.
Specifications
| Brand Name | 3M | Sub Brand | Performance Plus™ |
| Item Name | Twist-On Wire Connector | Type | Rounded Wing, Flame Retardant |
| Voltage Rating | 600 VAC | Conductor Size | 22-8 AWG |
| Number of Conductors | 5 | Connection Type | Twist-On |
| Color | Tan/Red | Contact Material | Spring Steel |
| Insulation Material | Polypropylene and Thermoplastic Elastomer | Length | 1.17 in |
| Diameter | 0.76 in | Temperature Rating | 105 °C |
| Standards | UL Listed, CSA, CE and IEC Certified, RoHS Compliant | Application | Used to Electrically Connect Two or more Conductor Ends in a Pigtail Application and Insulate the Connection, for Residential Wiring Job and Wide Range Applications |
Packages
| EA - EA |
