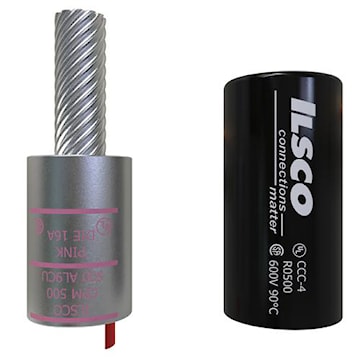

ILSCO CPM-500 ClearChoice Compression Pigtail Adapter Straight Pink
ilscpm500
ILSCO CPM-500 ClearChoice Compression Pigtail Adapter Straight Pink
Manufacturer:ILSCO
Manufacturer #:CPM-500
Description
Dual rated copper pigtail adaptor. Barrel manufactured from high strength aluminum alloy. Pigtail manufactured from high conductivity copper. Chamfered barrel. Color coded end caps inserted in barrel. Supplied with insulating cover. Allows insertion into equipment supplied with either copper or aluminum connectors. Provides maximum conductivity and excellent crimping characteristics. Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Compression Pigtail Adapter | Type | Straight |
| Voltage Rating | 600 V | Conductor Size | 500 kcmil |
| Pin Size | 0.681 in dia x 1-7/8 in L | Overall Length | 3.9625 in |
| Contact Material | Aluminum-Copper | Die Index Number | 16A |
| Color | Pink | Series/Model | CPM |
| Barrel Type | Standard | Barrel Size | 2.087 in |
| Temperature Rating | 90 °C | Standards | UL 486A-B, CSA File Number LR-29601 Certified, UL File Number E62525 |
| Application | Terminating Connector | UPC | 783669008647 |
