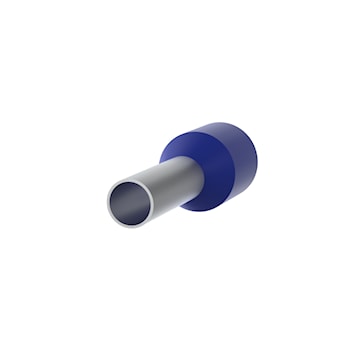

PANDUIT FSD80-8-D DIN 46228 Part 1, UL 486F Listed, UL 508A Certified Insulated DIN Ferrule Copper 0.59 in Overall Length, Blue

Manufacturer:PANDUIT
Manufacturer #:FSD80-8-D
Documents Documents

Description

Panduit FSD80-8-D Covered Single Wire Ferrule

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated DIN Ferrule Type Covered Single Wire Ferrules
Conductor Size 14 AWG Strip Length 15 mm
Overall Length 0.59 in Contact Material Copper
Insulating Material Polypropylene Color Blue
Finish Tin Plated Temperature Rating 221 °F
Standards CSA Certified, UL 486F Listed UPC 074983762590

Packages

6 - rarr_unit_1 1000 - rarr_unit_2
