pccsbct2-c

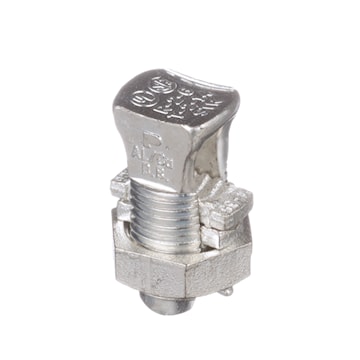

PANDUIT CANADA CORP. SBCT2-C Pan-Lug™ Split Bolt Connector Dual Rated, Mechanical 6-2 AWG Stranded Aluminum/Copper
pccsbct2-c
PANDUIT CANADA CORP. SBCT2-C Pan-Lug™ Split Bolt Connector Dual Rated, Mechanical 6-2 AWG Stranded Aluminum/Copper
Manufacturer:PANDUIT CANADA CORP.
Manufacturer #:SBCT2-C
Description
Split bolt, copper, tin plated, type SBCT, dual rated, #6 STR - #2 STR AWG.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Split Bolt Connector | Type | Dual Rated, Mechanical |
| Main Conductor Size | 6-2 AWG Stranded | Nut Size | 0.86 in |
| Voltage Rating | 600 V | Material | Copper Alloy |
| Series | SBCT | Tap Conductor Size | 6-2 AWG Stranded |
| Conductor Type | Aluminum/Copper | Inner Diameter | 0.31 in |
| Overall Length | 1.45 in | Finish | Tin Plated |
| Tightening Torque | 275 in-lb | Color | Silver |
| Temperature Rating | 90 °C | Dimensions | 0.6 in W |
| Standards | CSA Certified, UL AL9CU Listed, UL 47FL Listed, RoHS Compliant | UPC | 074983707706 |
