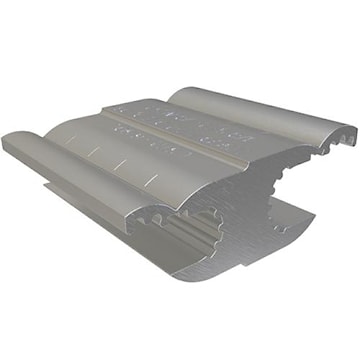

ILSCO HT-2 ClearChoice H-Tap Compression Connector 2/0-3/0 AWG, 1/0-2/0 AWG ACSR Run Conductor, Aluminum Alloy 1-6 AWG, 1/0-6 AWG Solid, 2-6 AWG ACSR Tap Conductor

Manufacturer #:HT-2


Aluminum compression tap connector, manufactured from high strength aluminum alloy. Prefilled with oxide inhibitor. Installed with industry standard ā€œOā€ and ā€œDā€ dies. Assures positive mating with cable strands when compressed. Provides corrosion resistance. Provides convenient die selection. Can be used on any secondary splice or tap application.


Brand Name Ilsco Sub Brand ClearChoice
Item Name H-Tap Compression Connector Type Serrated
Voltage Rating 600 V Run Conductor Size 2/0-3/0 AWG, 1/0-2/0 AWG ACSR
Tap Conductor Size 1-6 AWG, 1/0-6 AWG Solid, 2-6 AWG ACSR Material Aluminum Alloy
Conductor Type ACSR/Aluminum/Copper/Solid/Stranded Die Index Number D3
Resistance Corrosion Length 1-7/8 in
Width 13/16 in Height 2-3/16 in
Temperature Rating 90 °C For Use With ACSR/Aluminum/Copper/Solid/Stranded Conductors
Standards CSA AP-5465 Certified, ROHS Compliant, ND-58 and ILC-15 Application Use in Circuits Rated 35 kV or Less
UPC 783669461244
