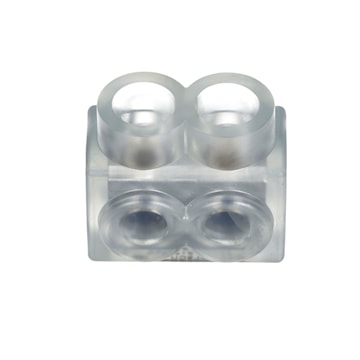

PANDUIT PCSB2/0-2S-6 Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 2 Ports 2/0-14 AWG Stranded Aluminum or Copper Aluminum, PVC Insulation

Manufacturer:PANDUIT
Manufacturer #:PCSB2/0-2S-6
Documents Documents

Description

The PCSB2/0-2S-6 Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Multi-Tap Connector Type Mechanical, Single-Sided
Voltage Rating 600 V Number of Ports 2
Conductor Size 2/0-14 AWG Stranded Aluminum or Copper Material Aluminum, PVC Insulation
Color/Finish Clear Conductor Type Aluminum/Copper
Temperature Rating 90 °C For Use With Aluminum and Copper Conductors
Standards UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C Application Aluminum or Copper Code Conductors
UPC 074983421404

Packages

1 - rarr_unit_1 6 - rarr_unit_2 100 - rarr_unit_3
