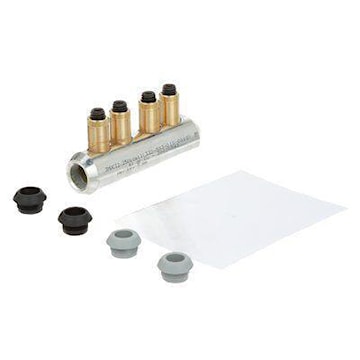

3M CANADA QCI-2-250 Shearbolt Connector In-Line, Mechanical 2 AWG - 250 kcmil Aluminum

Manufacturer:3M CANADA
Manufacturer #:QCI-2-250


3M™ Mechanical Shearbolt Connectors offer easy installation without crimp tools or dies. This connector covers a large range of sizes, from 1000 to 1250 kcmil. It can be used with copper or aluminum conductors. Centering rings are provided for smaller conductors. 3M™ Mechanical Shearbolt Connectors are designed to shear off just below the outer surface of the connector body to eliminate the need to file. These connectors can be used for applications up to 46 kV and can be packed in a kit with 3M™ Splices QS-III or purchased separately.


Brand Name 3M Item Name Shearbolt Connector
Type In-Line, Mechanical Voltage Rating 35000 V
Conductor Size 2 AWG - 250 kcmil Material Aluminum
Color/Finish Electro-Tin Plated Series/Model QCI
Conductor Type Copper or Aluminum Dimensions 1.1 in OD x 4.41 in L
Temperature Rating 105 °C Standards ANSI C119.4, Class 2, IEEE-404, RoHS 2011/65/EU Compliant
UPC 051128585375
