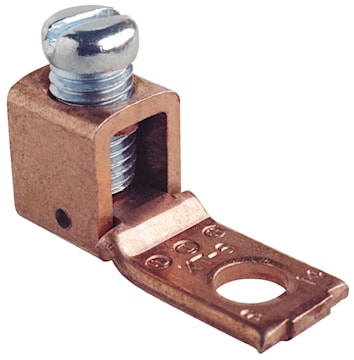

ILSCO XT-6 ILSCO Mechanical Lug 18-6 AWG Stranded/Solid Copper

Manufacturer:ILSCO
Manufacturer #:XT-6

Description

Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.

Specifications

Brand Name Ilsco Sub Brand ILSCO
Item Name Mechanical Lug Type XT:STRAIGHT TONGUE
Conductor Type Aluminum/Copper Conductor Size 18-6 AWG Stranded/Solid
Number of Bolt Holes 1 Material Copper
Series XT Number of Conductors 1
Tongue Type Straight Voltage Rating 35000 V
Mounting Hole Size 0.203 in Temperature Rating 90 °C
Finish NA Color Copper
Standards UL 453G, 467 File Number E6207 Listed, CSA File Number LR-29601 Certified Application Mechanical Lug, One Conductor
UPC 783669957716
