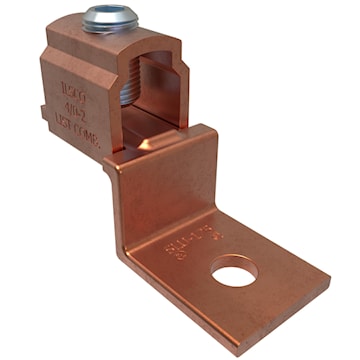

ILSCO SLU-225 ClearChoice Mechanical Lug 4/0-2 AWG Copper

Manufacturer:ILSCO
Manufacturer #:SLU-225

Description

Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Item Name Mechanical Lug Type SLU, Offset Tongue, Straight
Conductor Type Copper Conductor Size 4/0-2 AWG
Material Copper Number of Conductors 1
Bolt Size 5/16 in Tongue Size 1.1563 in L
Voltage Rating 2000 V Mounting Hole Size 11/32 in
Temperature Rating 90 degrees C Finish Bare
Color Copper Dimensions 2-1/8 in L x 1 in W
Standards UL 486A-B, CSA Certified, UL File Number E6207 Application For Terminating Connector
UPC 783669833751
