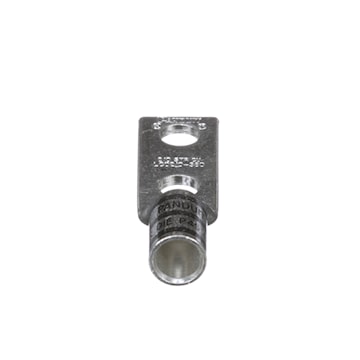

PANDUIT LCD2/0-38D-X Pan-Lug™ Compression Lug 2 Holes Copper 2/0 AWG 0.375 in Stud size

Manufacturer #:LCD2/0-38D-X
Documents Documents


Two-hole, standard barrel lug with window, 2/0 AWG wire, 3/8 stud hole, 1 hole spacing.


Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LCD
Conductor Size 2/0 AWG Number of Holes 2
Stud Size 0.375 in Barrel Length 0.98 in
Overall Length 3.14 in Color Code Black
Material Copper Voltage Rating 35000 V
Barrel Type Standard Tongue Type Standard
Finish Tin Plated Standards CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
UPC 074983383269
