Manufacturer:PANDUIT CANADA CORP.
Manufacturer #:LCC300-12-X
Description

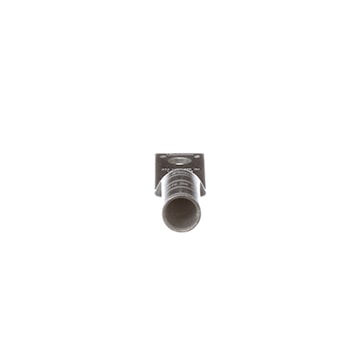

The LCC300-12-X Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Long Barrel Compression Lug | Type | Straight, Type LCC |
| Number of Holes | 2 | Stud Size | 1/2 in |
| Barrel Length | 2.24 in | Overall Length | 5.94 in |
| Color Code | White | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long Barrel Length without Inspection Window |
| Tongue Type | Standard | Finish | Tin Plated |
| Mounting Type | 2.31 in Hole | Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983902507 |
