pcclcc2-14a-q

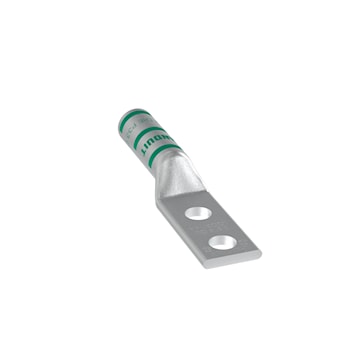

PANDUIT LCC2-14A-Q CULUGLB,2HOLE,#2AWG,1/4,.63PK
pcclcc2-14a-q
PANDUIT LCC2-14A-Q CULUGLB,2HOLE,#2AWG,1/4,.63PK
Manufacturer:PANDUIT
Manufacturer #:LCC2-14A-Q
Description
PANDUIT® Code conductor two-hole window long barrel lug maximizes number of crimps and provides premium wire pull-out strength and electrical performance. Inspection window to visually assure full conductor insertion. Color-coded barrels marked with specified competitor die index numbers for proper crimp die selection. Tin-plated to inhibit corrosion.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | 2-Hole Compression Lug | Type | Type LCC |
| Conductor Size | 2 AWG | Number of Holes | 2 |
| Stud Size | 1/4 in | Barrel Length | 1.16 in |
| Tongue Size | 0.6 in W x 0.1 in T | Overall Length | 2.77 in |
| Color Code | Brown | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long with Inspection Window, Straight |
| Tongue Type | Standard | Stud Hole Spacing | 0.63 in |
| Finish | Tin Plated | Mounting Type | Hole |
| Standards | California Proposition 65 Warning | UPC | 074983382460 |
