pcclcas4/0-12-x
PANDUIT LCAS4/0-12-X Pan-Lug™ Compression Lug 1 Holes Copper 4/0 AWG 0.5 in Stud size
pcclcas4/0-12-x
PANDUIT LCAS4/0-12-X Pan-Lug™ Compression Lug 1 Holes Copper 4/0 AWG 0.5 in Stud size
Manufacturer:PANDUIT
Manufacturer #:LCAS4/0-12-X
Description

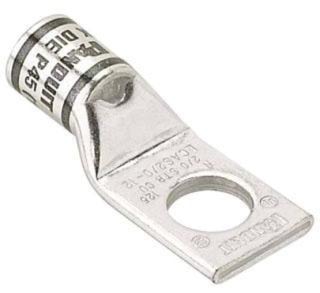

One-hole, short barrel with window lug, 4/0 AWG wire, 1/2" stud hole.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Type LCAS |
| Conductor Size | 4/0 AWG | Number of Holes | 1 |
| Stud Size | 0.5 in | Barrel Length | .91 in |
| Overall Length | 2.4 in | Color Code | Purple |
| Material | Copper | Voltage Rating | 35000 V |
| Barrel Type | Short | Tongue Type | Standard |
| Finish | Tin Plated | Standards | C22.2 No. 65-13, UL 486A-486B File No. E52164 |
| UPC | 074983225125 |
