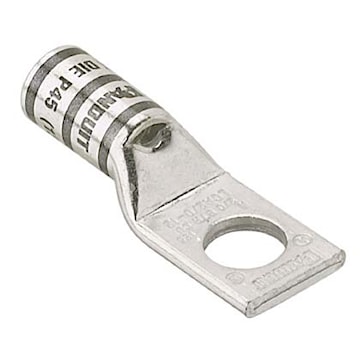

PANDUIT LCA2/0-12-X Pan-Lug™ Compression Lug 1 Holes Copper 0.5 in Stud size

Manufacturer:PANDUIT
Manufacturer #:LCA2/0-12-X
Documents Documents

Description

The LCA2/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LCA
Number of Holes 1 Stud Size 0.5 in
Barrel Length 0.98 in Overall Length 2.39 in
Color Code Black Material Copper
Voltage Rating 35000 V Barrel Type Standard
Tongue Type Standard Finish Tin Plated
Standards C22.2 No. 65-13, UL 486A-486B File No. E52164 UPC 074983900312

Packages

1 - rarr_unit_1 10 - rarr_unit_2 100 - rarr_unit_3
