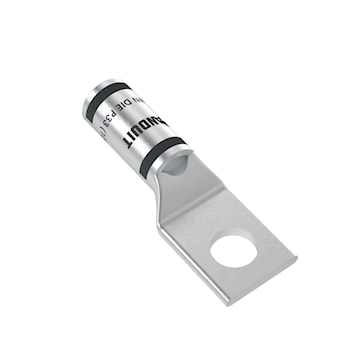

PANDUIT LCA2-56-Q Pan-Lug™ Compression Lug 1 Holes Copper 0.3125 in Stud size

Manufacturer:PANDUIT
Manufacturer #:LCA2-56-Q
Documents Documents

Description

The LCA2-56-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LCA
Number of Holes 1 Stud Size 0.3125 in
Barrel Length 0.88 in Overall Length 1.9 in
Color Code Brown Material Copper
Voltage Rating 35000 V Barrel Type Standard
Tongue Type Standard Finish Tin Plated
Standards C22.2 No. 65-13, UL 486A-486B File No. E52164 UPC 074983900169

Packages

1 - rarr_unit_1 25 - rarr_unit_2 100 - rarr_unit_3
