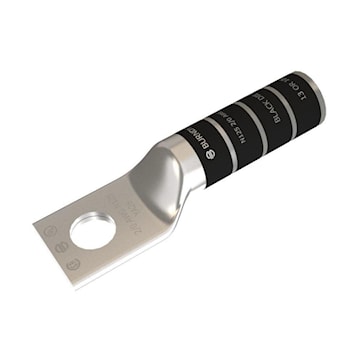

HUBBELL YA26 Hylug™ Compression Lug 1 Holes Copper 2/0 AWG 3/8 in Stud size

Manufacturer:HUBBELL
Manufacturer #:YA26

Description

Copper Compression lug, 1 Hole w/o Inspection Window, 2/0 AWG, 3/8" Stud, Long Barrel, Tin Plated.

Specifications

Brand Name Burndy Sub Brand Hylug™
Item Name Compression Lug Type YA, Uninsulated
Conductor Size 2/0 AWG Number of Holes 1
Stud Size 3/8 in Overall Length 2.77 in
Color Code Black Material Copper
Voltage Rating 600 - 35000 V Barrel Type Long, Straight
Finish Tin Plated Temperature Rating 90 °C
For Use With Code Conductor Standards UL Listed, CSA Certified, RoHS Compliant
Application For Code Conductor UPC 781810502600
