intet2825cr

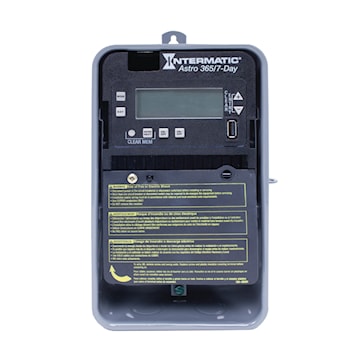

INTERMATIC INC ET2825CR ASTRONOMIC TIMER
intet2825cr
INTERMATIC INC ET2825CR ASTRONOMIC TIMER
Manufacturer:INTERMATIC INC
Manufacturer #:ET2825CR
Description
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. They come in standard 7-day astronomic versions.
100-hour supercapacitor eliminates the need for batteries
Up to 96 set points or events
Up to 50 holiday blocks with schedule capabilities
Automatic input voltage selection from 120 to 277 VAC, 60 Hz
Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
Configurable outputs allow the control of various voltages and applications
Relays incorporate zero-crossing technology to extend the life of the control
Non-volatile EEPROM memory protects programming indefinitely
LED compatible
USB port makes transferring and saving of schedules easy
Specifications
| Brand Name | Intermatic | Item Name | Timer Control |
| Type | Astronomic Electronic | Voltage Rating | 120 - 277 VAC |
| Amperage Rating | 30 A | HP Rating | 1 hp |
| Time Setting Range | 6 dy 23 hr 59 min | Number of Poles | 1 |
| Contact Configuration | 1 NO, 2 SPST | Frequency Rating | 50/60 Hz |
| Color | Gray | Enclosure Type | NEMA 3R |
| Mounting | Wall | Temperature Rating | -40 to 68 °C |
| Standards | Meet Title 20/24 Compliant, UL Listed | Application | For Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Outdoor |
| UPC | 078275147706 |
