HUBBELL CANADA ULC RSD415W AC Decorator Switches General Purpose, Standard, 4-Way Rocker Switch 120/277 VAC, 15 A, Positive Snap White
hubrsd415w
HUBBELL CANADA ULC RSD415W AC Decorator Switches General Purpose, Standard, 4-Way Rocker Switch 120/277 VAC, 15 A, Positive Snap White
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:RSD415W
Description

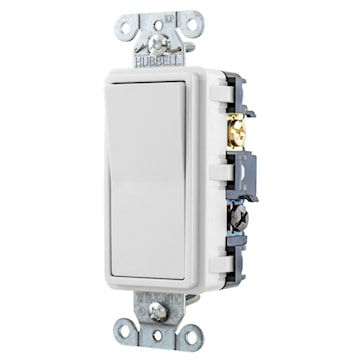

tradeSELECT® Decorator quiet rocker switch. 4-way and 15 A at 120 to 277 VAC switch. Self-grounding, back and side-wire. Smooth, quiet rocker. Ultrasonically welded cover and base. -20 to 60°C operating temperature. Light glows through the top portion of the rocker when switch is in the off position.
Smooth, quiet rocker
Self-grounding feature is standard
Ultrasonically welded cover and base
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | AC Decorator Switches |
| Item Name | Rocker Switch | Type | General Purpose, Standard, 4-Way |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 15 A |
| Contact Configuration | 2 Position | Number of Poles | 2 Pole |
| Number of Positions | 2 | Power Rating | 4155 W |
| Contact Rating | Per UL 20 | Actuator | Rocker |
| Switch Function | Positive Snap | Mounting | Screw Mount |
| Connection | Terminal Screw | Terminal Type | Screw |
| Enclosure Standard | None | Temperature Rating | -20 °C Minimum Without Impact, 60 °C Maximum Continuous |
| Material | Composite | Color | White |
| Operating Cycles | 30000 | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | NEMA WD-1, UL 20 | Application | Residential Wiring Devices |
| UPC | 883778101441 |
