hubrsd315

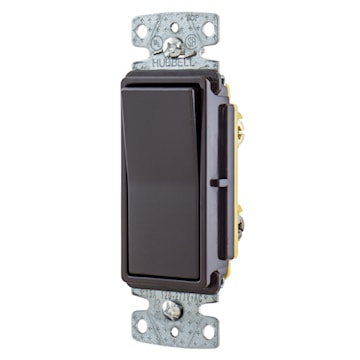

HUBBELL CANADA ULC RSD315 AC Decorator Switches 3-Way, General Purpose, Standard Rocker Switch 120/277 V, 15 A, Brown
hubrsd315
HUBBELL CANADA ULC RSD315 AC Decorator Switches 3-Way, General Purpose, Standard Rocker Switch 120/277 V, 15 A, Brown
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:RSD315
Description
tradeSELECT® Decorator three-way rocker switch. Self-grounding, push and back and side wire termination. Smooth, quiet rocker. Ultrasonically welded cover and base. UL listed E3896, CSA certified. Operating temperature -20 to 60°C.
Smooth, quiet rocker
Self-grounding feature is standard
Ultrasonically welded cover and base
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | AC Decorator Switches |
| Item Name | Rocker Switch | Type | 3-Way, General Purpose, Standard |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 15 A |
| Contact Configuration | 2 Position | Number of Poles | 1 |
| Number of Positions | 2 | Power Rating | 4155 W |
| Contact Rating | Per UL 20 | Actuator | Rocker |
| Mounting | Screw Mount | Connection | Push Wired, Back and Side Wired |
| Terminal Type | Screw | Enclosure Standard | None |
| Temperature Rating | -20 °C Minimum without Impact, 60 °C Maximum | Material | Composite |
| Color | Brown | Operating Cycles | 30000 |
| Environmental Conditions | Indoor Dry unless protected by additional means | Standards | NEMA WD-1, UL20, UL E3896 Listed, CSA Certified |
| Application | Residential Wiring Devices | UPC | 883778101236 |
