hubhbl2730cn

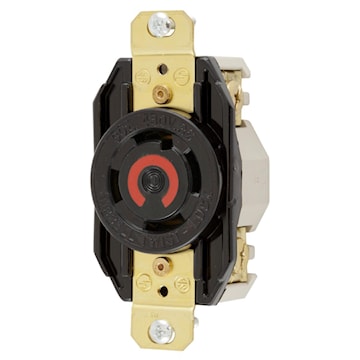

HUBBELL CANADA ULC HBL2730CN Twist-Lock® Non-Shrouded Locking Single Receptacle 30 A, L16-30 Black
hubhbl2730cn
HUBBELL CANADA ULC HBL2730CN Twist-Lock® Non-Shrouded Locking Single Receptacle 30 A, L16-30 Black
Price
$121.74
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2730CN
Description
TWIST-LOCK® Single flush receptacle made of nylon with 3 pole, 4 wire, 3Ø 480 V AC, 10 HP.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Single Receptacle | Type | Non-Shrouded |
| Grade | Industrial | Size | Standard |
| Voltage Rating | 480 V | Amperage Rating | 30 A |
| Number of Poles | 3 | Number of Wires | 4 |
| Connection Type | Back and Side Wire | NEMA Rating | L16-30 |
| Material | Nylon | Color | Black |
| Phase | 3 | Degree of Protection | IP20 |
| Terminal Connection | Screw | Grounding | Grounding |
| Contact Material | Brass | Dimensions | 1.56 in Face OD x 1.7 in W x 1.23 in D |
| Mounting Type | Recessed/Flush | Temperature Rating | -40 °C to 60 °C |
| Standards | UL 498, Federal Specification WC-596-G, CSA C22.2M | UPC | 783585236162 |
