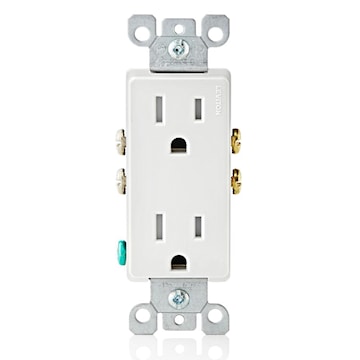

LEVITON MANUFACTURING T5325-W Decora® Tamper-Resistant, 2-Outlet, 1-Unit Straight Blade Duplex Receptacle with Child Protection 15 A, 5-15R White
levt5325w
LEVITON MANUFACTURING T5325-W Decora® Tamper-Resistant, 2-Outlet, 1-Unit Straight Blade Duplex Receptacle with Child Protection 15 A, 5-15R White
Manufacturer:LEVITON MANUFACTURING
Manufacturer #:T5325-W
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper child Resistant, Decora, Duplex Receptacle, Straight Blade, Grounding, Quickwire Push-In & Side,White.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle with Child Protection | Type | Tamper-Resistant, 2-Outlet, 1-Unit |
| Grade | Commercial | Size | 4.2 H x 1.33 W x 0.76 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wire Type | Grounding | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | 5-15R |
| Connection Type | Quickwire Push-in and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14 AWG | Material | Thermoplastic |
| Color | White | Frequency Rating | 50/60 Hz |
| Terminal Connection | Screw | Grounding | Grounding |
| Dimensions | 38.7 mm W x 29 mm D x 103.2 mm H | Mounting Type | Claw and Screw, Wallplate, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | NEMA WD-6, ANSI C73, NOM 057 Certified, CSA File Number LR-406, CSA C22.22 No. 111, UL 20, UL Listed 498, UL Listed 943, UL File Number E-13399 | Application | Commercial |
| UPC | 078477381625 |
