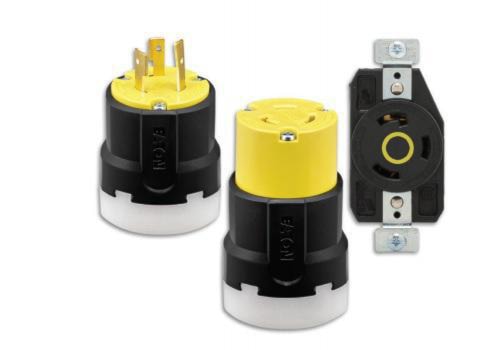

COOPER WIRING AHCL530P Arrow Hart Color Coded Locking Plug 30 A, 125 V, Industrial Grade, Ultra Grip
Description
NEMA L5-30 Color Coded Ultra Grip Plug. All nylon construction. EPDM gasket seals cord hole from dust and debris. Back wire terminal clamps for easy secure wiring. Individual wiring compartments with tapered channel for easy insertion of wires. Clear cover over wiring compartments allows easy inspection of wiring terminations. Rating printed on side of device. Double dovetail cord clamps with reversible inserts provide secure cord retention over a full range of cord diameters.
Specifications
Brand Name | Eaton | Sub Brand | Arrow Hart |
Item Name | Color Coded Locking Plug | Type | Industrial Grade, Ultra Grip |
Number of Wires | 3 | Number of Poles | 2 |
Voltage Rating | 125 V | Amperage Rating | 30 A |
Conductor Size | 14-8 AWG | NEMA Configuration | NEMA L5-30 |
Color/Finish | Yellow and Black | Cord Size | 0.38 - 1 in dia |
Terminal Connection | Back Wire Terminal Clamp | Temperature Rating | -40 °C to 60 °C |
Contact Material | Tin Plated Bronze | Dielectric Strength | 1000 V |
Material | Nylon | Dimensions | 2.23 in L x 2.1 in W x 2.69 in H |
Environmental Conditions | V2 Flammability Rated Per UL94 | Standards | cULus Listed, NOM Certified, NAFTA and RoHS Compliant |
UPC | 032664755804 |
Packages
1 - rarr_unit_1 |
