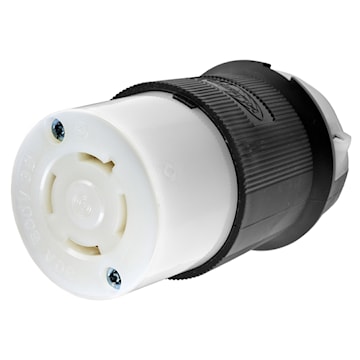

HUBBELL CANADA ULC HBL2743 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 30 A, 600 VAC, 3 Ports 4 Conductors Black and White
hubhbl2743
HUBBELL CANADA ULC HBL2743 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 30 A, 600 VAC, 3 Ports 4 Conductors Black and White
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2743
Description
Twist-Lock® insulgrip connector body made of nylon with 3 pole, 4 wire grounding, 3 phase 600 V AC, 30 A. 0.35 to 1.15 inch cord diameter.
Ribbed nylon housing provides a secure grip and impact and chemical resistance.
Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or contaminants.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Insulgrip® |
| Item Name | Locking Connector | Type | Female, Standard |
| Voltage Rating | 600 VAC | Amperage Rating | 30 A |
| Conductor Size | 12-8 AWG | Number of Conductors | 4 |
| Connection Type | Pressure Screw | Material | Composite |
| Color | Black and White | Number of Ports | 3 |
| Length | 2.33 in | Mounting | Cord Mounted |
| NEMA Rating | L17-30R | Temperature Rating | -25 to 75 °C with Impact, -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial |
| UPC | 783585039398 |
