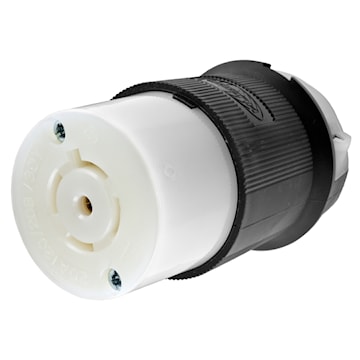

HUBBELL CANADA ULC HBL2513 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 20 A, 120/208 VAC, 4 Ports 5 Conductors Black and White
hubhbl2513
HUBBELL CANADA ULC HBL2513 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 20 A, 120/208 VAC, 4 Ports 5 Conductors Black and White
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2513
Description
Twist-Lock® insulgrip connector body made of nylon with 4 pole, 5 wire non-grounding, 3 phase Y 120/208 V AC, 20 A. 0.35 to 1.15 inch cord diameter.
Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or contaminants.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Insulgrip® |
| Item Name | Locking Connector | Type | Female, Standard |
| Voltage Rating | 120/208 VAC | Amperage Rating | 20 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 5 |
| Connection Type | Screw Terminal | Material | Composite |
| Color | Black and White | Number of Ports | 4 |
| Length | 2.33 in | Mounting | Cord Mounted |
| NEMA Rating | L21-20R | Temperature Rating | -25 to 75 °C with Impact, -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial |
| UPC | 783585038551 |
