HUBBELL CANADA ULC HBL400FBL Single Pin Single Pole Connector Female Plug 400 A, 600/250 VAC/VDC, 1 Ports 1 Conductors Blue
hubhbl400fbl
HUBBELL CANADA ULC HBL400FBL Single Pin Single Pole Connector Female Plug 400 A, 600/250 VAC/VDC, 1 Ports 1 Conductors Blue
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL400FBL
Description

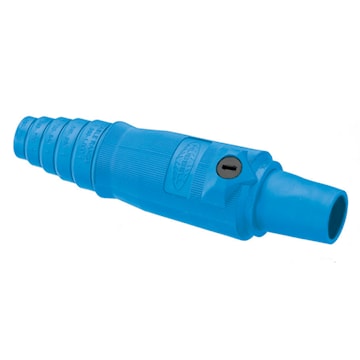

Single pole thermoplastic elastomer female plug. Cable size 2/0 - 4/0 AWG.
Extra Long non-conductive inner sleeve
Turn and Lock Symbol aids in the mating of devices
Easily Identifiable Cable with cut off points for secure fit
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Single Pin |
| Item Name | Single Pole Connector | Type | Female Plug |
| Voltage Rating | 600/250 VAC/VDC | Amperage Rating | 400 A |
| Conductor Size | 2/0-4/0 AWG | Number of Conductors | 1 |
| Connection Type | Screw | Wattage | 240000 W |
| Phase | 1 | Material | Composite |
| Color | Blue | Number of Ports | 1 |
| Screw Type | Pressure Terminal | Length | 7.700 in |
| Mounting | Cord | NEMA Rating | Non-NEMA |
| Standards | UL 498 | Application | For High Ampacity Connections |
| UPC | 783585113739 |
