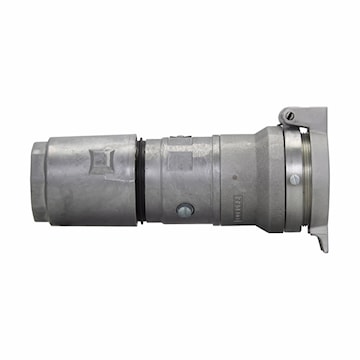

CROUSE-HINDS APR10467 Arktite® Cable Connector Receptacle Grounding Style 2, Watertight 100 A, 600 VAC/250 VDC, 4 Ports 4 Conductors

Manufacturer #:APR10467
Documents Documents


Connector to supply power to portable electrically operated devices such as motor-generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment. Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance.


Brand Name Crouse-Hinds Sub Brand Arktite®
Item Name Cable Connector Receptacle Type Grounding Style 2, Watertight
Voltage Rating 600 VAC/250 VDC Amperage Rating 100 A
Conductor Size 4-1 AWG (Building), 4-2 AWG (Extra Flex) Series/Model APR Series
Number of Conductors 4 Material Copper-Free Aluminum
Number of Ports 4 Length 10.88 in
Diameter 0.875 - 1.7 in NEMA Rating NEMA 4
Standards NEC/CEC, CE Certified, UL 514, UL 1010, UL 1682, CSA C22.2 Application For Industrial Applications
UPC 782274057002
