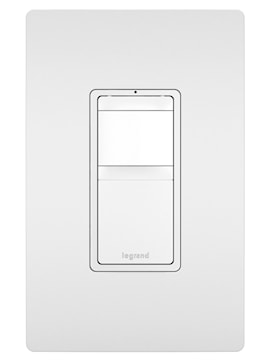

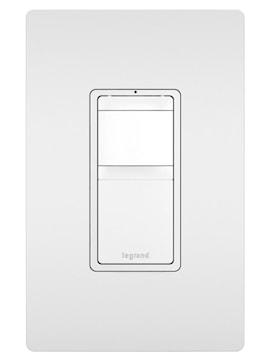

LEGRAND RRW600UTC The Radiant® Occupancy Sensor 3 Way, Indoor 120 VAC, Tri-Color

Manufacturer:LEGRAND
Manufacturer #:RRW600UTC
Documents Documents

Description

Lighted switch for visibility in darkened rooms. Automatic-ON, Manual-ON, and Selectable Auto/Manual ON. Adjustable time delay of 30 seconds to 30 minutes. No neutral required. Low-profile styling with uniform color-matched lens and device. Coverage: 180 degrees, max. 600 ft.2 (56m2). Works with most common residential lighting types. Load: Incandescent.

Specifications

Brand Name Pass & Seymour Sub Brand The Radiant®
Item Name Occupancy Sensor Type 3 Way, Indoor
Voltage Rating 120 V Number of Poles 1
Sensor Type Passive Infrared Viewing Angle 180°
Coverage Area 600 ft² Color Tri-Color
Mounting Type Flush/Wall Frequency Rating 0 - 60 Hz
Maximum Load Capacity 600 W Terminal Connection 2-Wire
Material Polycarbonate Temperature Rating 0 - 55 °C
Standards cULus Listed Application For Bathrooms, Laundry Rooms or Mudrooms, Garages and More
UPC 785007496598
