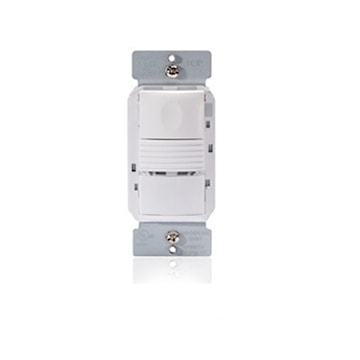

LEGRAND PW-301-347-W Wattstopper Occupancy Sensor Wall Switch, Indoor 347 VAC, White

Manufacturer #:PW-301-347-W


WattStopper® Passive infrared (PIR) wall switch sensor can turn lights off and on based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics and a variety of features. High sensitivity and dense coverage for exceptional performance. colour-matched lens and low profile for appealing design. Defaults to manual-on operation for maximum energy savings. Optional neutral connection with break off tab to expose neutral terminals. Allows multi-way control from one of up to four control locations.


Brand Name WattStopper Sub Brand Wattstopper
Item Name Occupancy Sensor Type Wall Switch, Indoor
Voltage Rating 347 VAC Sensor Type Passive Infrared
Sensing Distance 10.6 m Floor/Front, 4.5 m Side Coverage Area 1050 ft²
Color White Mounting Type Surface/Wall/Strap
Maximum Load Capacity 1500 W Terminal Connection Flying Leads
Material Plastic Dimensions 40.3 mm W x 35.5 mm D x 114.36 mm H
Mounting Height 1.2 m Temperature Rating 35 °C
Standards UL 244A, 508 Application For Offices, Conference Rooms, Lunch/Break Rooms
UPC 754182935567
