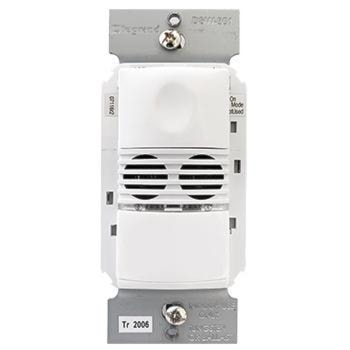

LEGRAND DSW301W Wattstopper Occupancy Sensor Dual Technology, Wall Switch 120/277 VAC, White, Gloss

Manufacturer:LEGRAND
Manufacturer #:DSW301W

Description

WattStopper® Dual technology wall switch occupancy sensor turns lights off and on based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. Replaces existing wall switches and fits behind a standard decorator wall plate. High sensitivity and dense coverage for exceptional performance. Allows multi-way control from one of up to four control locations. colour-matched lens and low profile for appealing design. Optional neutral connection with break off tab to expose neutral terminals. Defaults to manual-on operation for maximum energy savings. Load: 0 to 1500 W ballast and LED, 1/6 HP.

Specifications

Brand Name WattStopper Sub Brand Pass & Seymour
Item Name Occupancy Sensor Type Dual Technology, Wall Switch
Voltage Rating 120 - 277 VAC Sensor Type Passive Infrared
Sensing Distance 2.2 m, 10.6 m Color White, Gloss
Mounting Type Surface Frequency Rating 0 - 60 Hz
Maximum Load Capacity 1500 W Material Plastic
Dimensions 44 mm W x 46 mm D x 69 mm H Mounting Height 1.2 m
Application For Offices, Conference Rooms, Lunch/Break Rooms, Commercial UPC 754182935444
