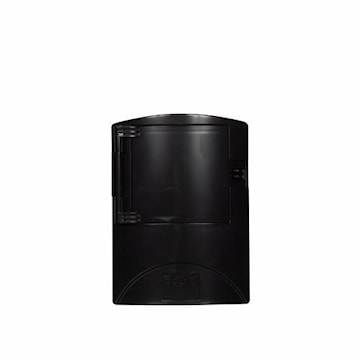

EATON CPL072R Single Phase Main Lug Load Center Non-Combination 70 A, 1 PH, 250 VAC, Type 3R Polymeric

Manufacturer #:CPL072R


CPL Plugin Loadcentre, Non-combination, Main Lug Only, 70A, Three-wire, 250V, Single phase, NEMA 3R, Polymeric, Two-pole BR or BRH breakers


Brand Name Eaton Item Name Single Phase Main Lug Load Center
Type Non-Combination Number of Circuits 2
Number of Spaces 2/4 Voltage Rating 250 VAC
Amperage Rating 70 A Phase 1
Mounting Type Surface Enclosure Type Type 3R
Series/Model CPL Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 14-2 AWG Construction Polymeric
Dimensions 6-1/4 in W x 4-5/16 in D x 8-11/16 in H Standards CSA Certified, UL Listed
Application Protection and Distribution of Single and Multidwelling Residential and Light Commercial Loads, Indoor/Outdoor use UPC 622588060025
