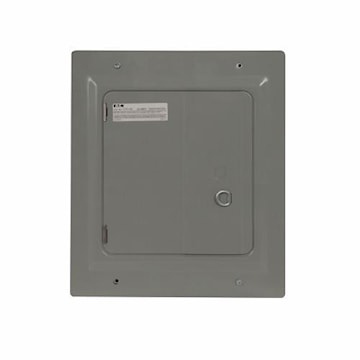

EATON CCPL108 Single Phase Main Lug Load Center Non-Combination 125 A, 1 PH, 120/240 VAC, Type 1 Steel

Manufacturer #:CCPL108


CPL Plugin Loadcentre, Non-combination, Main Lug Only, 125A, Flush/Surface, #14-1/0 AWG, Three-wire, 120/240V, Single phase, NEMA 1, 16 gauge galvanized sheet steel, 8/16 circuits


Brand Name Eaton Item Name Single Phase Main Lug Load Center
Type Non-Combination Number of Circuits 8
Number of Spaces 8/16 Voltage Rating 120/240 VAC
Amperage Rating 125 A Phase 1
Mounting Type Combination Flush/Surface Enclosure Type Type 1
Series/Model CPL Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 14-2/0 AWG Construction Steel
Finish Galvanized Dimensions 11 in W x 13 in D x 3-1/2 in H
Standards UL 50, UL 67, CSA Certified Application Protection and Distribution of Single and Multidwelling Residential and Light Commercial Loads and Indoor use
UPC 622588100806
