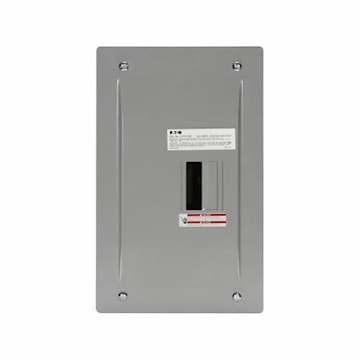

EATON CCPL102 Single Phase Main Lug Load Center Non-Combination 100 A, 1 PH, 120/240 VAC, Type 1 Steel

Manufacturer #:CCPL102


CPL Plugin Loadcentre, Non-combination, Main Lug Only, 100A, Flush/Surface, #14-1/0 AWG, Three-wire, 120/240V, Single phase, NEMA 1, 16 gauge galvanized sheet steel


Brand Name Eaton Item Name Single Phase Main Lug Load Center
Type Non-Combination Number of Circuits 2
Number of Spaces 2/4 Voltage Rating 120/240 VAC
Amperage Rating 100 A Phase 1
Mounting Type Surface Enclosure Type Type 1
Series/Model CPL Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 14-1/0 AWG Construction Steel
Finish Galvanized Dimensions 6-3/4 in W x 3-1/4 in D x 11-1/2 in H
Standards UL 67, UL 50, CSA Certified Application Protection and Distribution of Single and Multidwelling Residential and Light Commercial Loads and Indoor use
UPC 622588100769
