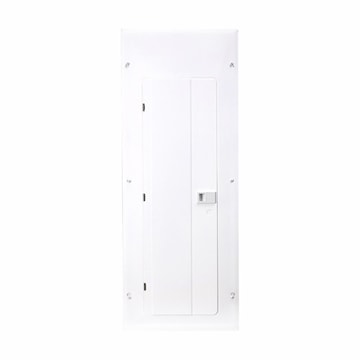

EATON CBRPM240 Single Phase Main Breaker Load Center Main breaker loadcenter 200 A, 1 PH, 120/240 VAC, Type 1 Steel

Manufacturer #:CBRPM240


Eaton BR main breaker loadcenter, 40 ckt, 200 amp, main breaker, single phase, white for Canada


Brand Name Eaton Item Name Single Phase Main Breaker Load Center
Type Main breaker loadcenter Number of Circuits 40
Number of Spaces 40/80 Voltage Rating 120/240 VAC
Amperage Rating 200 A Phase 1
Mounting Type Combination Flush/Surface Enclosure Type Type 1
Series/Model BR Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 2-300 MCM Construction Steel
Finish Galvanized/Epoxy Painted Dimensions 14-3/4 in W x 3-7/8 in D x 39 in H
Standards UL 50, UL 67, CSA Certified Application For Residential and Indoor use
UPC 621037003132
