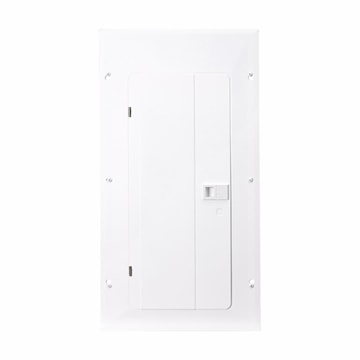

EATON CBRPM112 Single Phase Main Breaker Load Center Main breaker loadcenter 100 A, 1 PH, 120/240 VAC, Type 1 Steel

Manufacturer #:CBRPM112


Eaton BR main breaker loadcenter, 12 ckt, 100 amp, main breaker, Single-Phase, white


Brand Name Eaton Item Name Single Phase Main Breaker Load Center
Type Main breaker loadcenter Number of Circuits 12
Number of Spaces 12/24 Voltage Rating 120/240 VAC
Amperage Rating 100 A Phase 1
Mounting Type Combination Flush/Surface Enclosure Type Type 1
Series/Model BR Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 8-1/0 AWG Construction Steel
Finish Galvanized/Epoxy Painted Dimensions 14-3/4 in W x 3-7/8 in D x 18-3/4 in H
Standards UL 50, UL 67, CSA Certified Application For Residential and Indoor use
UPC 621037003484
