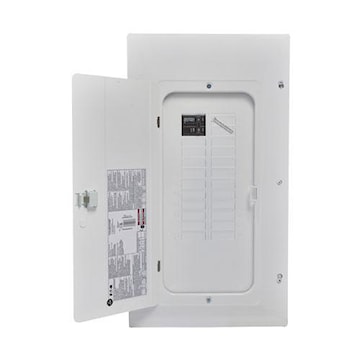

EATON RCBRPM112 Single Phase Main Breaker Load Center 100 A, 1 PH, 120/240 VAC, Type 3R Steel

Manufacturer #:RCBRPM112


Type BR plug-on combination main circuit breaker outdoor/raintight type 3R neutral loadcentre. Single phase three-wire 120/240 VAC.


Brand Name Eaton Item Name Single Phase Main Breaker Load Center
Number of Circuits 12 Number of Spaces 12/24
Voltage Rating 120/240 VAC Amperage Rating 100 A
Phase 1 Enclosure Type Type 3R
Series/Model BR Breaker Type Main
Wiring Configuration 3-Wire Neutral Type Plug-On
Conductor Size 8-1/0 AWG Construction Steel
Finish Galvanized/Epoxy Painted Dimensions 14-3/8 in W x 5 in D x 18-1/2 in H
Standards CSA Certified Application Protection and Distribution of Single and Multidwelling Residential and Light Commercial Loads and Outdoor use
UPC 786689059767
