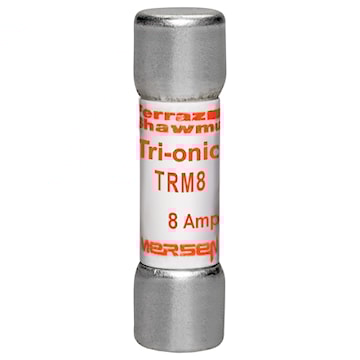

MERSEN CANADA TORONTO INC TRM8 Midget Fuse Time-Delay Midget 8 A, 250 VAC
mertrm8
MERSEN CANADA TORONTO INC TRM8 Midget Fuse Time-Delay Midget 8 A, 250 VAC
Manufacturer:MERSEN CANADA TORONTO INC
Manufacturer #:TRM8
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Specifications
| Brand Name | Ferraz Shawmut | Item Name | Midget Fuse |
| Type | Time-Delay | Voltage Rating | 250 VAC |
| Amperage Rating | 8 A | Interrupt Rating | 10 kA |
| Fuse Class | Midget | Mounting Type | Clip |
| Terminal Connection | Ferrule | Dimensions | 10 x 38 mm |
| Standards | UL 24814, CSA C22.2 No. 248.14, RoHS Compliant | Application | For Supplemental Protection, Small Motors, Small Transformers, Lighting Circuits, Control Circuits |
| UPC | 782001746537 |
