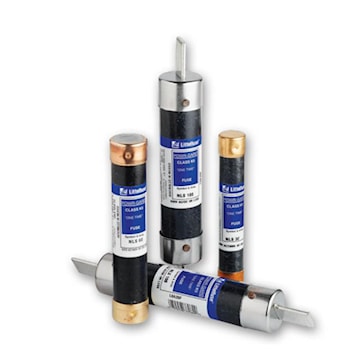

FUSETEK NLN-200 Powr-Gard® Cartridge Fuse Fast-Acting Class K5 200 A, 250 VAC/250 VDC
fusnln200
FUSETEK NLN-200 Powr-Gard® Cartridge Fuse Fast-Acting Class K5 200 A, 250 VAC/250 VDC
Manufacturer:FUSETEK
Manufacturer #:NLN-200
Description
NLN series fuses provide low cost protection for general-purpose feeder and branch circuits when available short circuit currents are less than 50000 A. They replace all Class H fuses which have only a 10000 A interrupting rating. They are suitable for use in many residential and smaller commercial and industrial applications.
Specifications
| Brand Name | Littelfuse | Sub Brand | Powr-Gard® |
| Item Name | Cartridge Fuse | Type | Fast-Acting |
| Series | NLN | Voltage Rating | 250 VAC/250 VDC |
| Amperage Rating | 200 A | Interrupt Rating | 20 kA at 250 VDC |
| Fuse Class | Class K5 | Body Style | Cylindrical |
| Mounting Type | Holder | Terminal Connection | Knife Blade |
| Dimensions | 1-9/16 in dia x 7-1/8 in L | Standards | UL File Number E81895 Listed, CSA File Number LR29862 Certified |
| Application | For General Purpose Residential and Commercial Circuits with Little or No Motor Load |
