FUSETEK 0217005.VXP Cartridge Fuse Fast-Acting 5 A, 250 VAC
fus0217005.vxp
FUSETEK 0217005.VXP Cartridge Fuse Fast-Acting 5 A, 250 VAC
Manufacturer:FUSETEK
Manufacturer #:0217005.VXP
Description

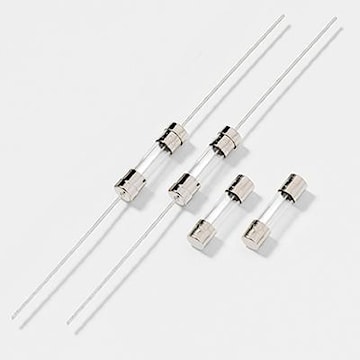

The 5x20mm fast-acting glass body cartridge fuse designed to IEC specification. Designed to International IEC Standards for use globally. Meets the IEC 60127-2. Available in cartridge and axial lead form. RoHS compliant and lead-free.
Specifications
| Brand Name | Littelfuse | Item Name | Cartridge Fuse |
| Type | Fast-Acting | Series | 217 |
| Voltage Rating | 250 VAC | Amperage Rating | 5 A |
| Interrupt Rating | 50 A at 250 VAC | Body Style | Cylindrical |
| Mounting Type | Holder | Contact Material | Nickel-Plated Brass, Tin-Plated Copper |
| Construction | Glass | Dimensions | 0.205 dia x 0.787 in L |
| Temperature Rating | -55 to 125 °C | Standards | UR File No. E10480 Listed, CSA File No. 29862, CCC, VDE, PSE, SEMKO, KC Certified, CE Marked |
| Application | Used as Supplementary Protection in Appliance or Utilization Equipment to Provide Individual Protection for Components or Internal Circuits |
