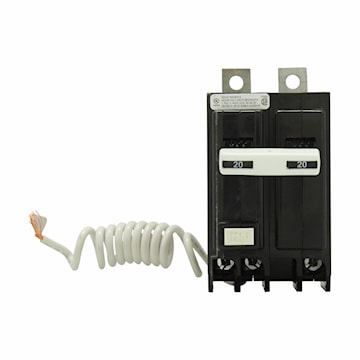

EATON QBGFT2020 GFCI Circuit Breaker with Self-Test Type QBGFT, QuickLag 20 A, 2 P,
cuhqbgft2020
EATON QBGFT2020 GFCI Circuit Breaker with Self-Test Type QBGFT, QuickLag 20 A, 2 P,
Manufacturer:EATON
Manufacturer #:QBGFT2020
Description
Eaton QB GFCI circuit breaker,Ground fault circuit breaker,20A,10 kAIC,Two-pole,120/240V,Common trip,5 mA Trip sensitivity,#14–10 Cu, #12–10 Al,QBGF
Specifications
| Brand Name | Cutler Hammer | Item Name | GFCI Circuit Breaker with Self-Test |
| Type | Type QBGFT, QuickLag | Number of Poles | 2 |
| Interrupt Rating | 10 kA | Amperage Rating | 20 A |
| Voltage Rating | 120/240 V | Mounting Type | Bolt-On |
| Trip Range | 5 mA | Phase | 1 |
| Conductor Size | #14-10 AWG Copper, #12-10 AWG Aluminum | Trip Type | Non-Interchangeable, Long Time and Instantaneous, Thermal Magnetic |
| Temperature Rating | 40 °C | Dimensions | 4-1/2 in L x 2-3/4 in W x 2 in H |
| For Use With | Eaton Panel Boards | Standards | CSA Certified, HACR Rated, UL Listed |
| UPC | 786676026710 |
Packages
| 1 - rarr_unit_1 |
