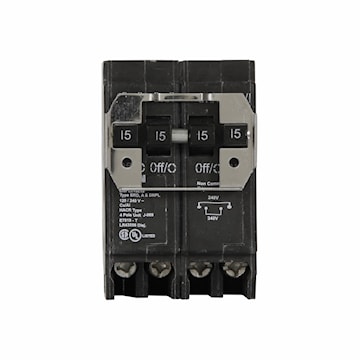

EATON DNPL153015 Quadplex™ Feeder Plug-in Circuit Breaker Type DNPL 4 P,

Manufacturer #:DNPL153015


Quadplexâ„¢ Circuit breaker. 15 A at 120 VAC (outer pole) and 30 A at 120/240 VAC (centre pole). 10000 A interrupting current rate. Used on BR series load centre.


Brand Name Cutler Hammer Sub Brand Quadplex™
Item Name Feeder Plug-in Circuit Breaker Type Type DNPL
Number of Poles 4 Interrupt Rating 10 kA
Amperage Rating 15 A (Outer Left 1-Pole), 30 A (Center 2-Pole), 15 A (Outer Right 1-Pole) Voltage Rating 120/240 VAC
Mounting Type Plug-in Phase 1
Conductor Size 14-4 AWG Aluminum/Copper Trip Type Thermal Magnetic, Long Time and Instantaneous, Independent
Dimensions 3 in L x 2 in W x 2-1/2 in H For Use With CPM/CPL/CBRPM/CBRPL Loadcenters
Standards UL Listed, CSA Certified Application For Residential and Light Commercial Distribution
UPC 622588061077
