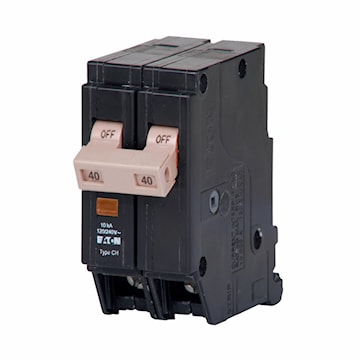

EATON CHF240 Plug-in Circuit Breaker Type CHF 40 A, 2 P, Plug-In
cuhchf240
EATON CHF240 Plug-in Circuit Breaker Type CHF 40 A, 2 P, Plug-In
Manufacturer:EATON
Manufacturer #:CHF240
Description
Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 40 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, #10-1/0 AWG Cu/Al, CHF, Type CH Loadcenters
Specifications
| Brand Name | Cutler Hammer | Item Name | Plug-in Circuit Breaker |
| Type | Type CHF | Number of Poles | 2 |
| Interrupt Rating | 10 kAIC | Amperage Rating | 40 A |
| Voltage Rating | 120/240 V | Terminal Connection | Plug-In |
| Mounting Type | Panelboard | Phase | 1 |
| Conductor Size | #10-1/0 AWG Copper/Aluminum | Trip Type | Thermal Magnetic, Trip Flag, Long Time and Instantaneous |
| Dimensions | 1.5 in L x 3.3 in W x 2.6 in H | For Use With | Type CH Residential Loadcenter |
| Standards | UL 489 Listed, HACR Rated | Application | For Residential, Light Commercial and OEM Applications |
| UPC | 786685532165 |
