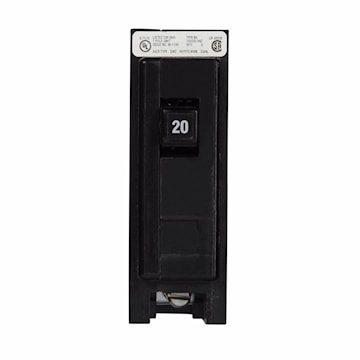

EATON BAB1020 Miniature Circuit Breaker Type BAB, QuickLag 20 A, 1 P, Extended Tang Line, Box Lug

Manufacturer:EATON
Manufacturer #:BAB1020

Description

Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, High intensity discharge,20 A,10 kAIC,Single-pole,120/240 V,Non-Interchangeable,Q7,BAB

Specifications

Brand Name Cutler Hammer Item Name Miniature Circuit Breaker
Type Type BAB, QuickLag Number of Poles 1
Interrupt Rating 10 kA Amperage Rating 20 A
Voltage Rating 120/240 VAC Terminal Connection Extended Tang Line, Box Lug
Mounting Type Bolt-On Phase 1
Frequency Rating 50/60 Hz Conductor Size 14-4 AWG Aluminum/Copper
Trip Type Non-Interchangeable, Thermal Magnetic Temperature Rating 0 - 40 °C Ambient
Dimensions 3 in L x 1 in W x 2-1/2 in H For Use With Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline Panel Boards
Standards UL Listed, CSA Certified, HACR Rated Application For Industrial Use
UPC 786679301203
