cscmwp0420w3p3cctudbz
CSC LED CORP MWP04-20W-3P-3CCT-UD-BZ MINI WALL PACK 120-347V1322-2749LM 3/4/5K BRNZ
cscmwp0420w3p3cctudbz
CSC LED CORP MWP04-20W-3P-3CCT-UD-BZ MINI WALL PACK 120-347V1322-2749LM 3/4/5K BRNZ
Manufacturer:CSC LED CORP
Manufacturer #:MWP04-20W-3P-3CCT-UD-BZ
Description

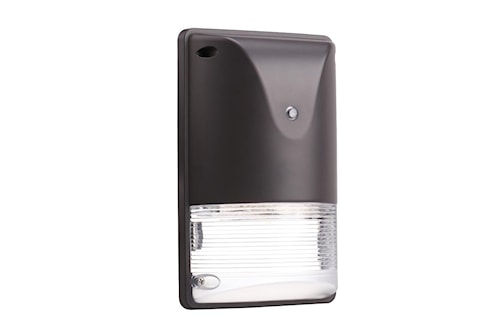

Mini Wall Pack with 10 W, 15 W, 20 W power selectable, 3000 K, 4000 K, 5000 K color selectable, 0 to 10 V dimmable, polyester powder coat finish (bronze), low glare, frosted polycarbonate lens, built-in photocell.
Specifications
| Brand Name | CSC-LED | Item Name | Wallpack |
| Type | Dimmable, Mini | Voltage Rating | 120 - 347 V |
| Fixture Wattage | 10/15/20 W | Housing Finish | Bronze Powder-Coated |
| Series | MWP04 | Amperage Rating | 0.3 A |
| Average Life | >54000 hr | Color Temperature | 3000/4000/5000 K |
| Color Rendering Index (CRI) | 82 | Lens Type | Borosilicate Glass |
| Lumens | 2557 lm | Enclosure Type | IP65 |
| Housing Material | Die-Cast Aluminum | Dimensions | 8.2 in W x 2.8 in D x 5 in H |
| Standards | cUL Listed, DLC Premium Listed | Application | For Security Lighting, Commercial Entrances, Stairways, Perimeter Areas and More |
