exm1100df181806

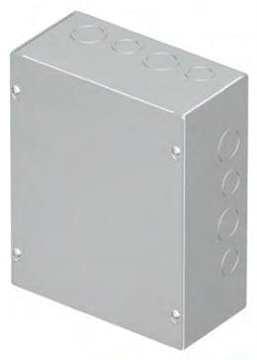

18x18x6 Junction Box Type DF Metallic ANSI/ASA
exm1100df181806
18x18x6 Junction Box Type DF Metallic ANSI/ASA
Manufacturer:EXM MANUFACTURING LTD
Manufacturer #:1100DF181806
Description
Box is used as junction or pull box and are suitable for surface mounting with the standard screw cover or for flush mounting using either of the two optional covers. Boxes and covers are made from 16 or 14 gauge steel. Four internal mounting holes, bonding screws and attachments are provided. Enclosures are finished with ANSI/ASA 61 grey heat fused powder paint, electrostatically applied on a pre-treated base.
Specifications
| Brand Name | EXM Manufacturing | Item Name | Junction Box |
| Type | Type DF, Metallic | Length | 18 in |
| Width | 18 in | Depth | 6 in |
| Material | 16/14 ga Steel | Finish | Polyester Powder |
| Color | ANSI/ASA 61 Gray | Number of Knockouts | 8 |
| Mounting Type | Surface | NEMA Rating | NEMA/EEMAC Type 1, IP30 |
| Cable Entry | (8) 1/2 - 3/4 in Knockout | Includes | Screws |
| Standards | UL Listed, CSA Certified | UPC | 717678047267 |
