HAMMOND MANUFACTURING EN4SD20208GY Eclipse Series Enclosure Mild Steel NEMA 3R, 4, IP66 508 mm H x 508 mm W x 203 mm D Gray
hamen4sd20208gy
HAMMOND MANUFACTURING EN4SD20208GY Eclipse Series Enclosure Mild Steel NEMA 3R, 4, IP66 508 mm H x 508 mm W x 203 mm D Gray
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:EN4SD20208GY
Description

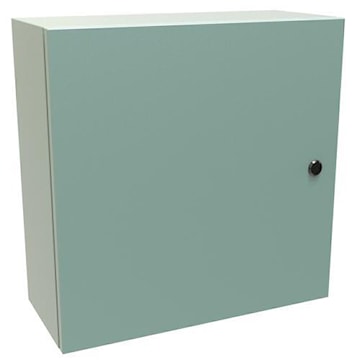

Wall mount enclosure type 4 constructed of 16 gauge mild steel with ANSI 61 smooth grey. Hinge door with quarter turn/handle. Smooth, continuously welded seams ground smooth. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Hinges are constructed from 304 stainless steel. Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall mount applications.
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | Eclipse Series |
| Item Name | Enclosure | Type | Single Door, Two Lock |
| Width | 508 mm | Depth | 203 mm |
| Height | 508 mm | Cover Type | Hinged |
| Gauge | 14/16 | NEMA Rating | NEMA 3R, 4, IP66 |
| Series | Eclipse | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Standards | CE, CSA Certified, UL Listed |
| Application | Designed to Enclose Electrical or Electronic Equipment and Protect Against Harsh, Industrial Environments | UPC | 623980447186 |
